Slide 1: ISA

The international standard atmosphere (ISA) is a hypothetical vertical distribution of atmospheric temperature, pressure, and density that, by international agreement, is taken to be representative of the atmosphere for purposes of pressure altimeter calibrations, aircraft performance calculations, aircraft and missile design, ballistic tables, etc. (see Table 1-2 and Figure 1-2). Weather-related processes are generally referenced to the standard atmosphere, as are examples in this document.

Continuous fluctuations of atmospheric properties create problems for engineers and meteorologists who require a fixed standard for reference. To solve this problem, they defined a standard atmosphere, which represents an average of conditions throughout the atmosphere for all latitudes, seasons, and altitudes.

Three column table showing the metric and English units for each property of the international standard atmosphere.

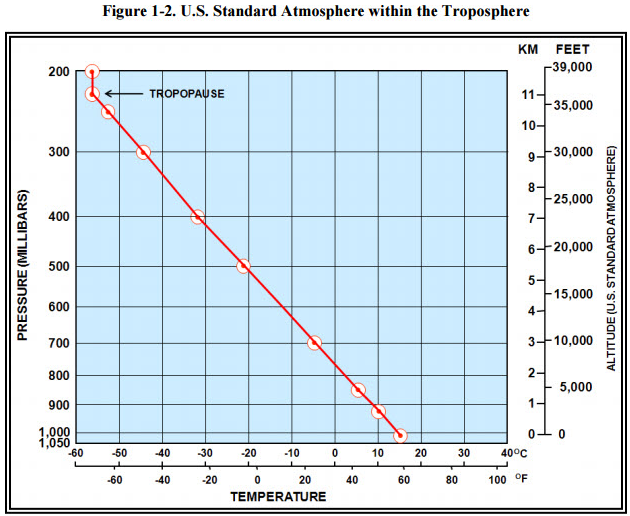

Graph depicting the standard atmosphere from 0 to 39,000 feet in elevation, also known as the Troposphere.

Can you read this graph? Try it.

1) What is the ISA temperature at 17,000 feet elevation?

2) What is the ISA pressure at 30,000 feet elevation?
